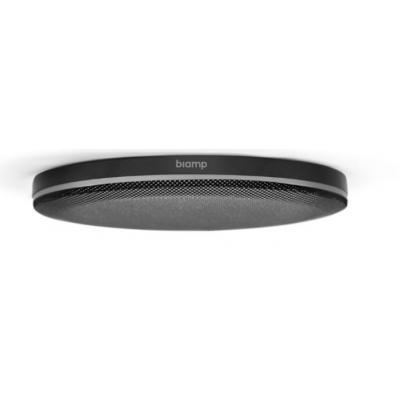

Biamp Parl? Tcm-Xa Ceiling Microphone5 Years Warranty The Parl? Tcm-Xa Is An Avb Low-Profile Ceiling Microphone And Poe+ (Ieee 802.3At Class 4 30W) Amplifier For Use In Tesira Systems. Comprising A Network Box And A Ceiling Microphone Each Microphone Includes Beamtracking Technology With Four 90-Degree Zones Providing Full 360-Degree Coverage Of The Meeting Space. Each Network Box Has Its Own Digital Signal Processing Module And Comes With An Additional Rj-45 Connector To Add An Optional Tcm-Xex. A Maximum Of Two Microphones Are Permitted Per Network Box (One Tcm-X Or Tcm-Xa With Tcm-Xex). The 2-Channel Poe+ Amplifier Includes An Internal Limiter Selectable Power And A Burst Mode To Handle Peak Signals. • Measures 5.90 Inches (150Mm) In Diameter • Uses Only One Channel Of Aec Per Mic • Network Box Includes Dsp For Beamtracking And A Poe+ Amplifier:
- Two Channels
- Burst Mode To Handle Peak Loads; Supports Up To 40W (4Ω) Or 30W (8Ω) Per Channel
- Software-Selectable Power Vs. Channel Count
- Includes Internal Limiter Function
- Beamtracking Technology Works Out-Of-Box Without Any Lobe Aiming Or Room Mapping
- Single Cable Connection Via Cat Cable
- Led Mute Status Indicator
- Available In Either Black Or White
- Evaluated To The Requirements Of Ul 2043 And Is Suitable For Use In Air Handling Spaces
- Additional Rj-45 Connection
- Ce Marked Ul Listed And Rohs Compliant
- Covered By Biamp Systems’ Five-Year Warranty FeaturesTypeCeiling Warranty5 Years
